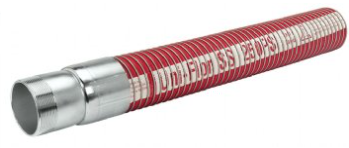

Uni-flon Tm Special Chemical Composite Hose

Is Built To Meet The Demands Of Today's Highly Aggressive Media. Superior Chemical Resistance Is Archived With A Teflon PTFE, Inner Liner, Reinforced With Multiple Plies Of Polyester And Polypropylene Films.

Operating Temperature: - 40 F To +250 F / - 40 C To 121 C

Uni-flon Sg

S-316ss Stainless Steel - Inner Helix
G-hi Tensile Galvanized Carbon Steel Outer Helix

Uni-flon SS

S-316SS Stainless - Inner Helix
S-316SS Stainless - Outer Helix

Red Cover
Uni - flon PS

P - Polypropylene Coated - Inner Helix
S - 316SS Stainless - Outer Helix

Uni-flon PG

P-polypropylene Coated - Inner Helix
G-high Tensile Galvanized Carbon Steel Outer Helix

All Hose And Duct Manufactured By Novaflex Are Warranted To Be Free From All Defects In Material And Work manship.it Is Impossible To Test Novaflex Hose And Duct Under All Conditions. To Which They Might Be Subjected In The Field. It Is Therefore The Buyer And/or End User's Responsibility To Test All Novaflex Hose And Duct Under Conditions That Duplicate The Service Conditions Prior To Installation. Due To Continuos Improvements, Technical Data Subject To Change Without Notice.
